Blocks reference

Published 12 October 2026, Updated 12 October 2026

This article describes every block available in the block library, what it is used for and which settings it asks for. Click Blocks in the HTML content toolbar to open the library.

Text blocks

BlockUse it forSettings / how to edit
HeadingSection titlesInserted as “New Heading”. Right-click → Headings → H1 to H6 to change the level. Keep levels in order (check Outline)
ParagraphNormal textClick and type. Use Style text for formatting
TableTabular data (prices, schedules)Dialog: Row count, Column count, Add header, Alternate row background color. Right-click → Table to add or delete rows/columns, add or remove the header, and turn alternate colours on or off
QuoteHighlighted quotationsType the quoted text
ListBulleted or numbered listsRight-click → List → To ordered list 1.2.3. or To unordered list •
CodeShowing code or technical text as-isType or paste the text
SpacerVertical empty spaceResize the height in the editor
SeparatorHorizontal line between sectionsNo settings
DetailsCollapsible “click to expand” sections (FAQ)Replace “Insert summary title here” and “Insert text here”
ExcerptShow summaries of other pages, with linksChoose Pages, Width, and Border
TOCAutomatic table of contents built from the page headingsNo settings; updates automatically

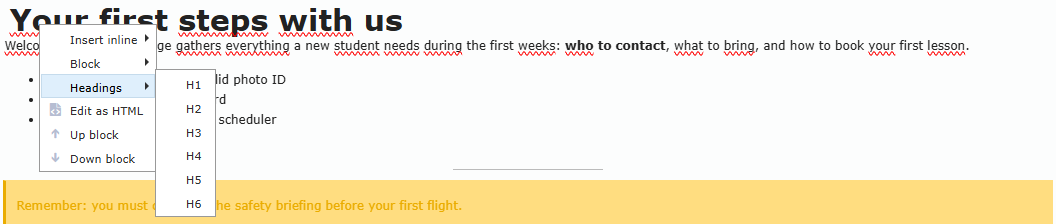

Headings menu with levels H1 to H6
Headings menu with levels H1 to H6
Table insert dialog
Table insert dialog

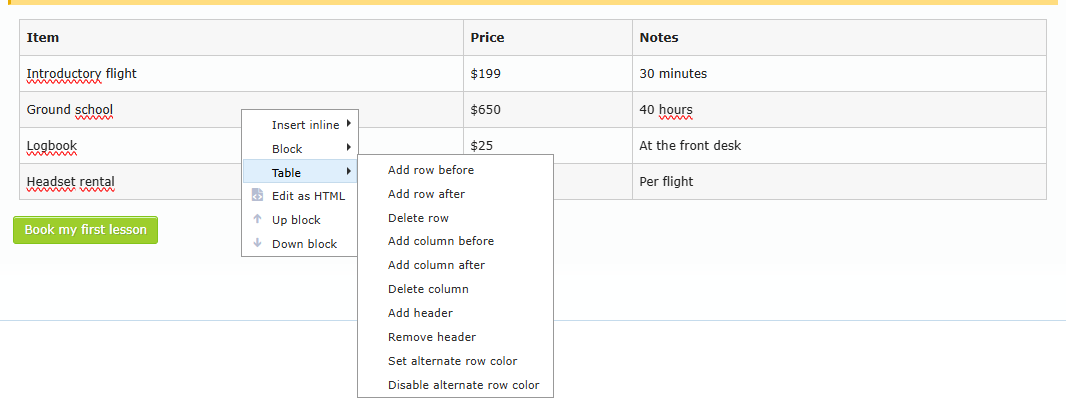

Table right-click menu
Table right-click menu

Media blocks

BlockUse it forSettings / how to edit
ImageA single pictureChoose a file in the media library. Set Width/Height (px) and New window in the bottom bar
Image & textPicture next to a textChoose the picture, then type the text
GalleryA grid of picturesCreate a gallery dialog: select images, set the max number of columns (1–10), and choose Open image in new window. Right-click → Gallery → Change column number / Modify gallery
CarouselRotating slideshow of a folder’s picturesFolder, Type of carousel (Slider/Fader), Number max of picture, Recursive search in sub-folders, Width, Height, Border
FileDownload link to a documentChoose the file in the media library
YoutubeEmbedded YouTube videoURL in the form https://www.youtube.com/embed/VIDEO-ID, Aspect ratio (1:1, 16:9, …)
Daily motionEmbedded Dailymotion videoURL https://www.dailymotion.com/embed/VIDEO-ID, Aspect ratio
PinterestEmbedded Pinterest boardBoard URL
FacebookEmbedded Facebook pageFacebook ID
TwitterEmbedded postPaste the Twitter embed code
TiktokEmbedded TikTok videoFollow the dialog
EmbedsAny other embed code (maps, forms, players)A text box opens: paste the embed code supplied by the external site, then right-click → Render HTML
AudioAudio playerAudio file URL
Social mediaRow of social network icons with linksRight-click the block → Social media → Add a social media brand, Square icons / Round icons. Right-click an icon → Set link or Remove. Drag icons to reorder

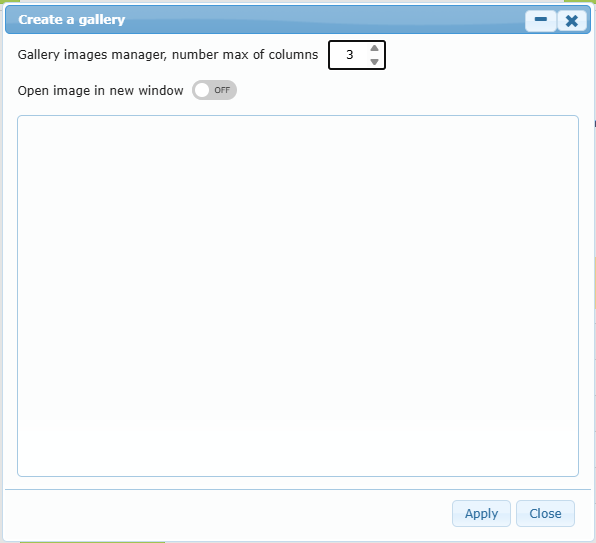

Create a gallery dialog
Create a gallery dialog

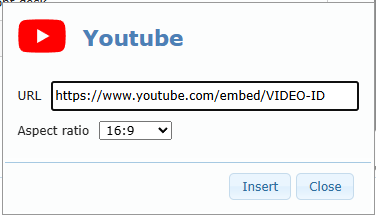

Youtube insert dialog
Youtube insert dialog

Widget blocks

BlockUse it forSettings / how to edit
ButtonA clickable call-to-action buttonTitle, URL, Classes, Open in new window. Right-click → Buttons → Edit a button, Add a button, Remove button
Visual listLink tiles or icon lists, optionally groupedTitle, Class, Number of group, Items per group, Groups are expandable. Right-click → Visual list → Link URL to item, add or delete rows, add or delete groups
Visual list+Like Visual list, with richer items that can expandSame settings as Visual list
ColumnsSide-by-side layoutNumber of columns (2–6). Right-click → Columns → add or delete columns
TabsContent split into tabsNumber of tab (1–10), Class. Right-click → Tabs → Rename Active tab, Add a tab, Remove Active tab
Modified dateShows the page’s last modified dateNo settings. Tip: lock the date in Page Options to keep a specific date
AuthorShows the page authorNo settings
MemberContact card of a memberTitle, Select member, Add emails (None / Primary email only / Primary and complimentary emails)
Member AvatarA member’s photoSelect member, Rounded/Square style, border (No / Simple / Shadow / Theme), Quality (%)
Big titleLarge underlined titleType the title
RssNews feed from another websiteFeed URL (for example https://www.sample.com/rss.xml)
Styled boxColoured message boxInfo, Done, Warning, or Error style
BarCodeBarcode or QR-type codeCode, Dot width, Line height, Dot or line color, Position

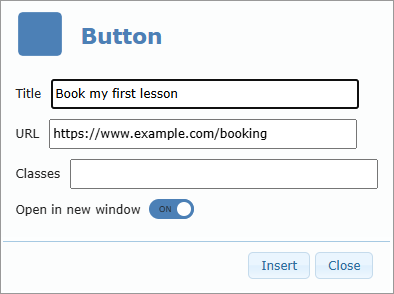

Button dialog
Button dialog

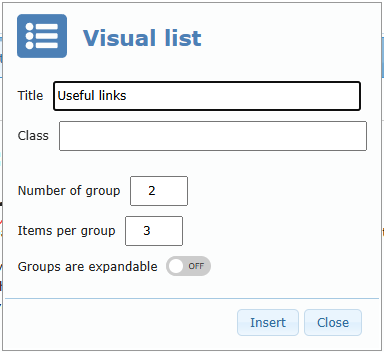

Visual list insert dialog
Visual list insert dialog
Columns insert dialog
Columns insert dialog

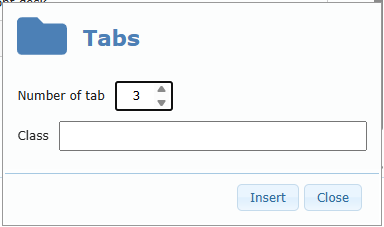

Tabs insert dialog
Tabs insert dialog
Styled box dialog
Styled box dialog

Transport Canada blocks

BlockUse it forSettings
TC publicationsUp-to-date list of Transport Canada publicationsSelect publications type, English/French
TC advisoriesTransport Canada advisoriesSelect advisory type, English/French
TC actsTransport Canada acts and regulationsSelect Acts type, English/French

These lists refresh automatically each time the page is displayed.

AirSupervision blocks

BlockUse it forSettings
E-coursesShow an e-course as a thumbnail or embed itE-course, Display the thumbnail or Embed the e-course, Width, Height, Position
QA recoQuality assurance recommendations summaryNo settings; refreshed automatically
QA schedQuality assurance scheduleNo settings; refreshed automatically
SMS 12M. statsSafety Management System statistics for the last 12 monthsNo settings
SMS range statsSMS statistics over a date rangeNo settings
Stripe pay boxOnline payment box (only when online payment is active)Enter items code as quantity:code, separated by semicolons (qty:code1;qty:code2…, for example 1:WLANGEVAL), English/French

Live blocks (QA, SMS, TC, RSS, E-courses, Excerpt, and so on) are refreshed with current information each time a member opens the page. You do not need to update the page manually.

What each block looks like on the page

The pictures below show how members see each block once the page is published: first on a computer (desktop page), then in the mobile app (mobile page). They were made with demo content in the preview, which is exactly what Desktop Preview and Mobile Preview show you.

Tip: the mobile version is narrower. Blocks placed side by side on a computer (Columns, Image & text) are stacked or squeezed on a phone. Always check Mobile Preview before publishing.

Heading

A large section title. Use H1 for the main sections and H2–H6 for sub-sections.

Heading block on a computer
Heading block on a computer
Heading block in the mobile app
Heading block in the mobile app

Paragraph

Normal text, with bold and italic words.

Paragraph block on a computer
Paragraph block on a computer
Paragraph block in the mobile app
Paragraph block in the mobile app

List

A bulleted list (or numbered list).

List block on a computer
List block on a computer
List block in the mobile app
List block in the mobile app

Quote

A highlighted quotation.

Quote block on a computer
Quote block on a computer
Quote block in the mobile app
Quote block in the mobile app

Code

Text shown exactly as typed, in a fixed-width font. Useful for frequencies, codes or technical values.

Code block on a computer
Code block on a computer
Code block in the mobile app
Code block in the mobile app

Separator

A thin horizontal line between two sections.

Separator block on a computer
Separator block on a computer
Separator block in the mobile app
Separator block in the mobile app

Table

A table with a header row and alternate row colours.

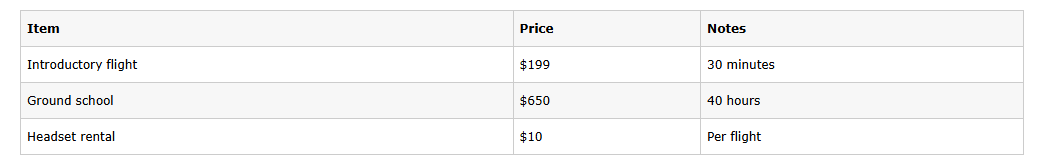

Table block on a computer
Table block on a computer

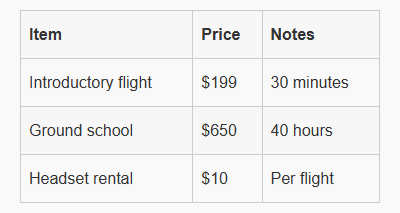

Table block in the mobile app
Table block in the mobile app

Details

A question or title that members click to show the hidden text, ideal for FAQs.

Details block on a computer
Details block on a computer
Details block in the mobile app
Details block in the mobile app

Big title

A large underlined title that separates the main parts of a page.

Big title block on a computer
Big title block on a computer
Big title block in the mobile app
Big title block in the mobile app


A single picture. On a phone, the picture is reduced to fit the screen width.

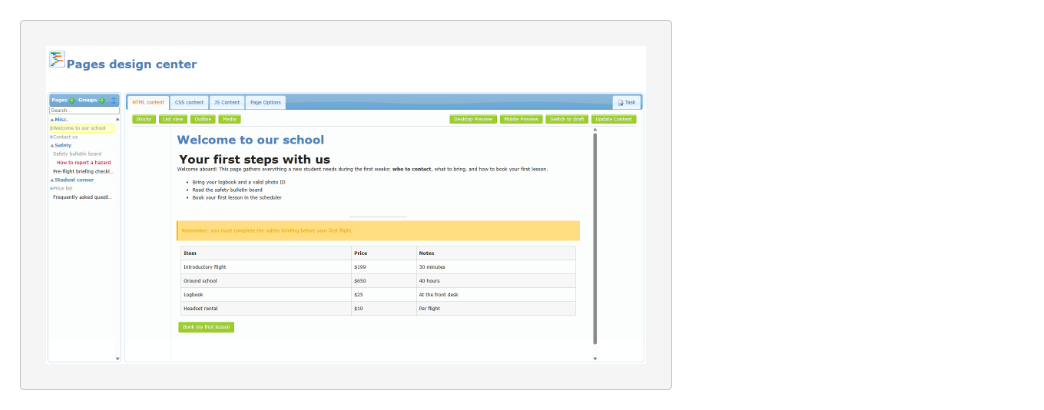

Image block on a computer
Image block on a computer

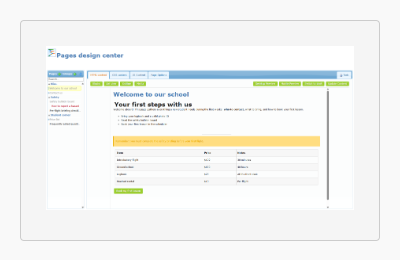

Image block in the mobile app
Image block in the mobile app

Image & text

A picture with a text beside it. On a phone, a wide picture leaves little room for the text: keep the picture narrow, or use separate Image and Paragraph blocks.

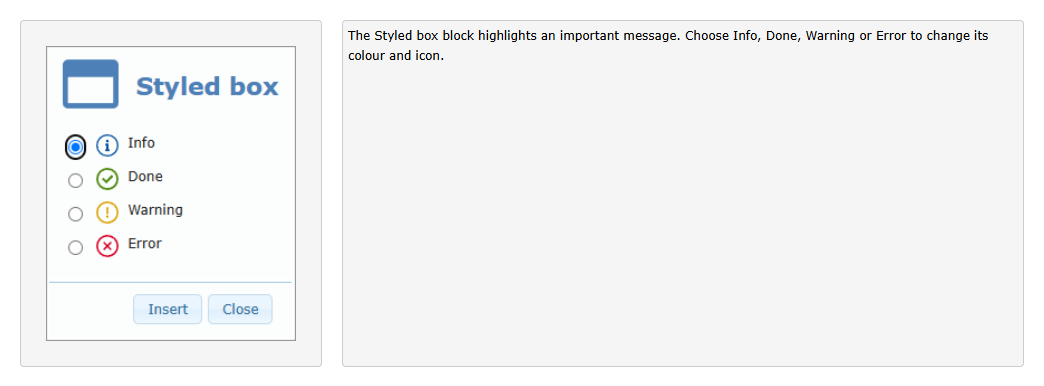

Image and text block on a computer
Image and text block on a computer

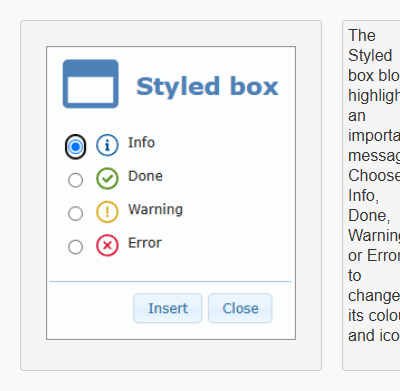

Image and text block in the mobile app
Image and text block in the mobile app

Gallery

Several pictures in a grid. Members click a picture to enlarge it.

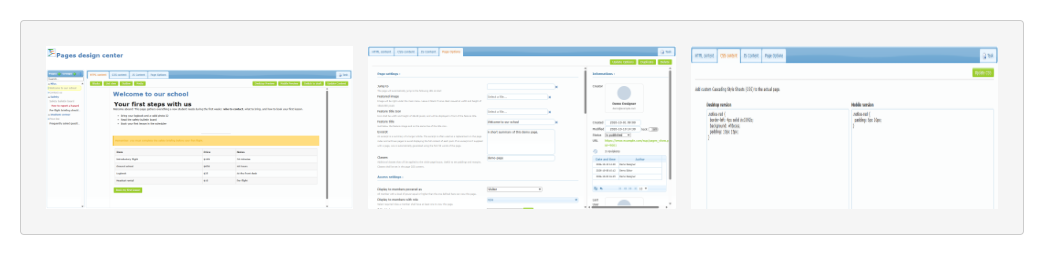

Gallery block on a computer
Gallery block on a computer

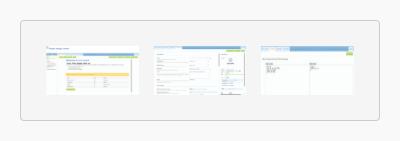

Gallery block in the mobile app
Gallery block in the mobile app

Social media

Icons linking to your social network pages (here, a single Facebook icon).

Social media block on a computer
Social media block on a computer
Social media block in the mobile app
Social media block in the mobile app

Button

A call-to-action button that opens a link.

Button block on a computer
Button block on a computer
Button block in the mobile app
Button block in the mobile app

Styled box

A coloured message box. The four styles are shown below: Info, Done, Warning and Error.

Styled box Info on a computer
Styled box Info on a computer
Styled box Info in the mobile app
Styled box Info in the mobile app
Styled box Done on a computer
Styled box Done on a computer
Styled box Done in the mobile app
Styled box Done in the mobile app
Styled box Warning on a computer
Styled box Warning on a computer
Styled box Warning in the mobile app
Styled box Warning in the mobile app
Styled box Error on a computer
Styled box Error on a computer
Styled box Error in the mobile app
Styled box Error in the mobile app

Columns

Content side by side on a computer. In the mobile app, the columns are stacked one below the other.

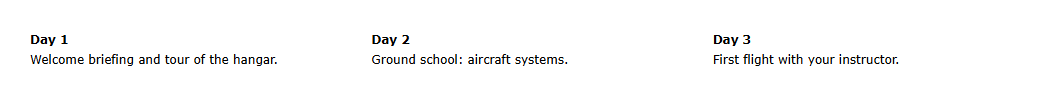

Columns block on a computer
Columns block on a computer

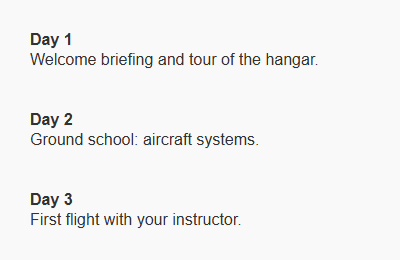

Columns block in the mobile app
Columns block in the mobile app

Tabs

Content split into tabs. Members click a tab to see its content.

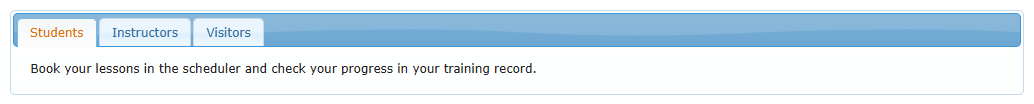

Tabs block on a computer
Tabs block on a computer

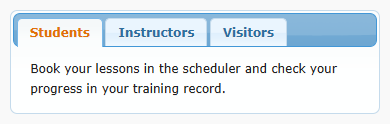

Tabs block in the mobile app
Tabs block in the mobile app

Visual list

A titled list of items, each item can be a link.

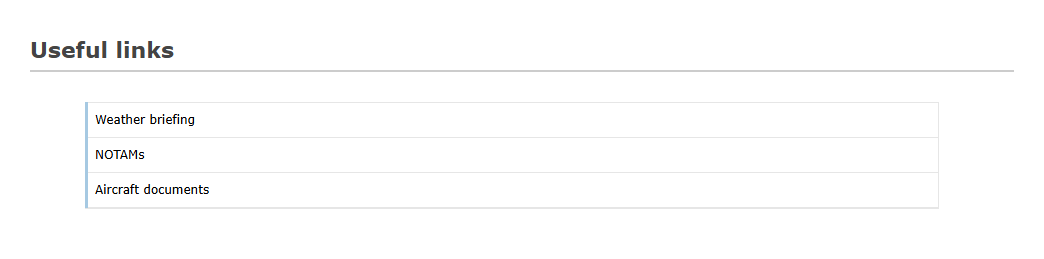

Visual list block on a computer
Visual list block on a computer

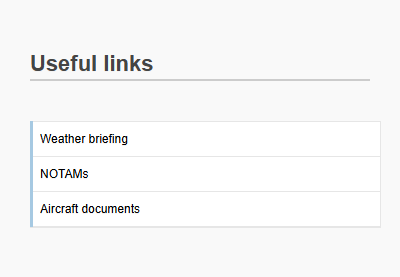

Visual list block in the mobile app
Visual list block in the mobile app

Visual list+

Like the Visual list, with items grouped and a + button to expand more details.

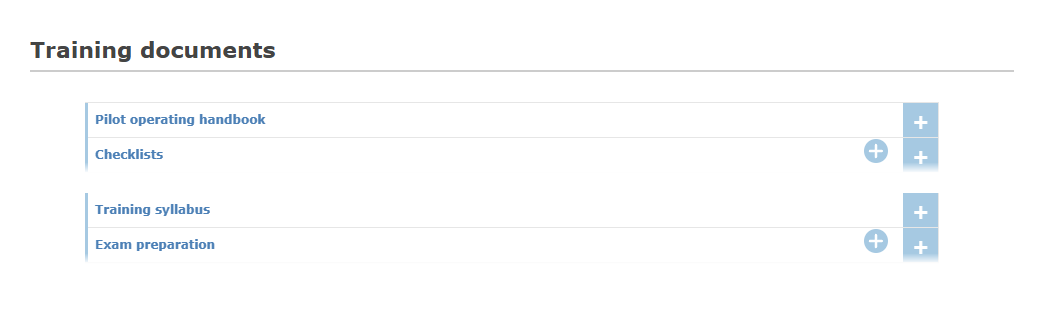

Visual list plus block on a computer
Visual list plus block on a computer

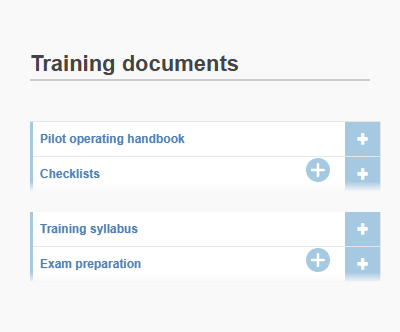

Visual list plus block in the mobile app
Visual list plus block in the mobile app

Modified date

The publication date and the last update date of the page.

Modified date block on a computer
Modified date block on a computer
Modified date block in the mobile app
Modified date block in the mobile app

BarCode

A code that members can scan with a phone.

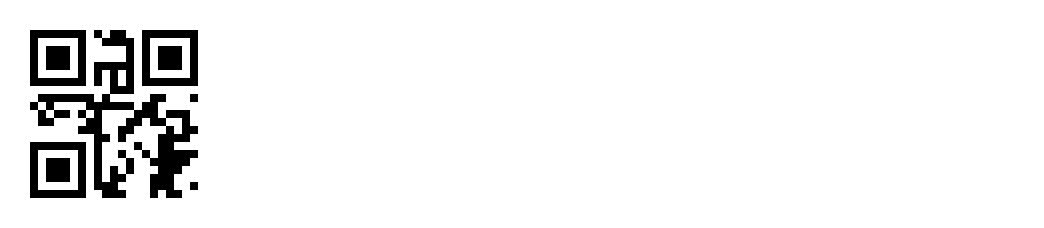

BarCode block on a computer
BarCode block on a computer

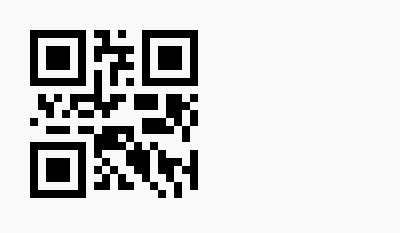

BarCode block in the mobile app
BarCode block in the mobile app

Stripe pay box

An online payment form. In this example, the item code entered is 1:WLANGEVAL (quantity 1 of the item WLANGEVAL). The box shows the order details with taxes, the member’s information (filled in automatically for a connected member) and the card payment area. The member details below are demo values.

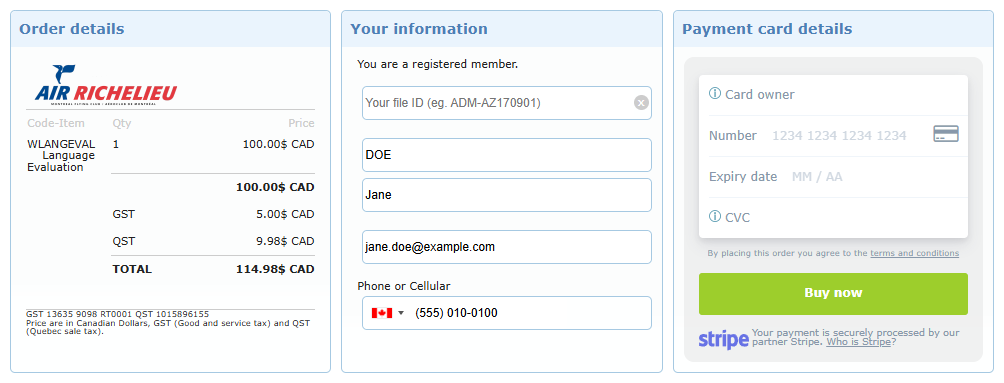

Stripe pay box on a computer
Stripe pay box on a computer

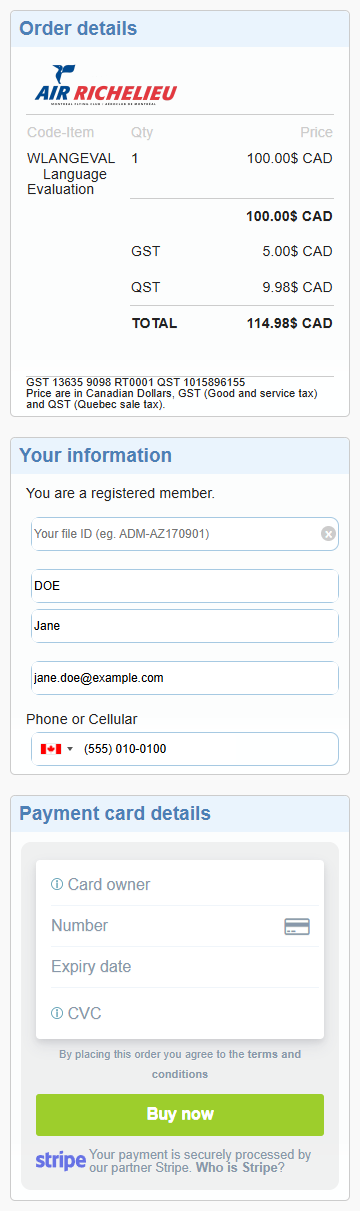

Stripe pay box in the mobile app
Stripe pay box in the mobile app

Blocks that show live information (TC publications, TC advisories, TC acts, Rss, E-courses, QA reco, QA sched, SMS statistics, Excerpt, TOC, Member, Member Avatar, Author) display the current information of your organization when the page is opened, so they are not illustrated here. Embedded videos and posts (Youtube, Daily motion, Facebook, Twitter, Tiktok, Pinterest, Embeds, Audio) look the same as on the original website.
